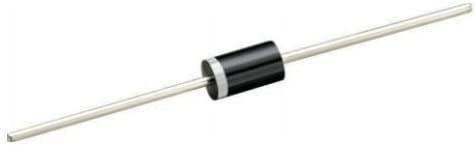

Products >> High voltage diodes(40kv, 500mA) >> BR Series
Application in X-ray power supply and high frequency doubler rectifier circuit.
250mA to 1000mA, 2kv to 10kv, 100ns
| Type | Vrrm(KV) | IF(AV)(mA) | IFSM(A) | Tstg(℃) | Vf(V) | Ir1(uA) |
Trr(us)
|
Outline | |
| BR2 | 2 | 1000 | 40 | -55~175 | 2.4 | 5 | 100 | φ5*9 φ1.2 | |
| BR4 | 4 | 850 | 20 | -55~175 | 4.4 | 5 | 100 | φ5*9 φ1.2 | |
| BR2F | 2 | 900 | 40 | -55~175 | 3.8 | 5 | 100 | φ5*9 φ1.2 | |
| BR3F | 3 | 900 | 40 | -55~175 | 3.8 | 5 | 100 | φ5*9 φ1.2 | |
| BR4F | 4 | 600 | 20 | -55~175 | 7 | 5 | 100 | φ5*9 φ1.2 | |
| BR5F | 5 | 600 | 20 | -55~175 | 8.8 | 5 | 100 | φ5*9 φ1.2 | |
| BR6F | 6 | 500 | 20 | -55~175 | 10.5 | 5 | 100 | φ5*9 φ1.2 | |
| BR8F | 8 | 400 | 20 | -55~175 | 12.9 | 5 | 100 | φ5*9 φ1.2 | |
| BR10F | 10 | 250 | 40 | -55~175 | 14 | 5 | 100 | φ5*9 φ1.2 | |
