Products >> High voltage diodes(40kv, 500mA) >> HV Series
Application in X-ray power supply and high frequency doubler rectifier circuit.
| Type | Vrrm(KV) | IF(AV)(mA) | IFSM(A) | Tstg(℃) | Vf(V) | Ir1(uA) |
Trr(us)
|

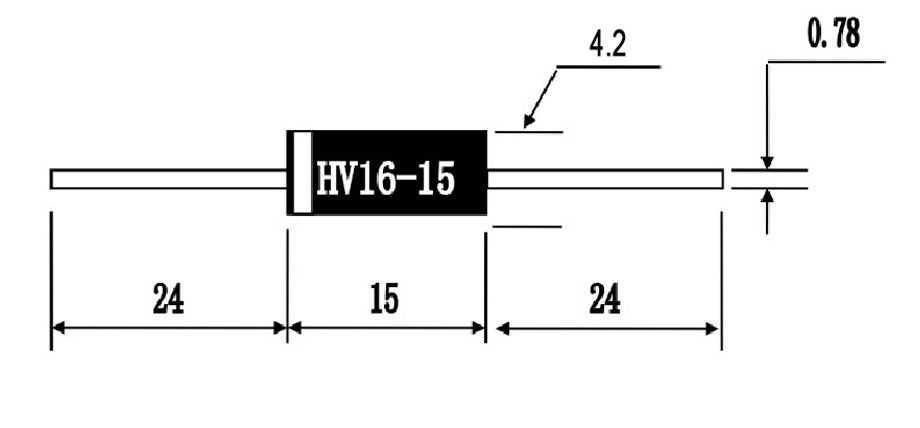

Outline | |
| HV40-08 | 8 | 400 | 20 | -55~160 | 15 | 2 | 100 | φ4.2*15 φ0.78 | |
| HV35-10 | 10 | 350 | 20 | -55~160 | 18 | 2 | 100 | φ4.2*15 φ0.78 | |
| HV30-12 | 12 | 300 | 20 | -55~160 | 21 | 2 | 100 | φ4.2*15 φ0.78 | |
| HV20-15 | 15 | 200 | 20 | -55~160 | 26 | 2 | 100 | φ4.2*15 φ0.78 | |
| HV16-15 | 15 | 160 | 20 | -55~160 | 26 | 2 | 100 | φ4.2*15 φ0.78 | |
| HV16-20 | 20 | 160 | 15 | -55~160 | 32 | 2 | 100 | φ4.2*15 φ0.78 | |
| HV12-25 | 25 | 120 | 15 | -55~160 | 40 | 2 | 100 | φ4.2*15 φ0.78 | |
| HV12-30 | 30 | 120 | 15 | -55~160 | 48 | 2 | 100 | φ4.2*15 φ0.78 | |
